iPhone 17 Pro Max - Tech Specs

Year introduced: 2025

Finish

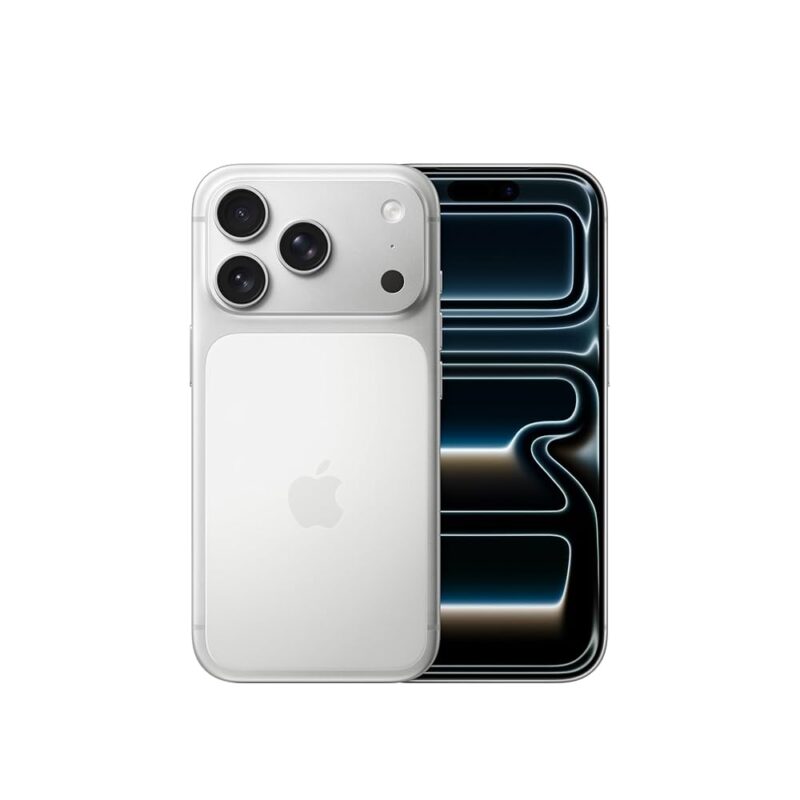

• Silver

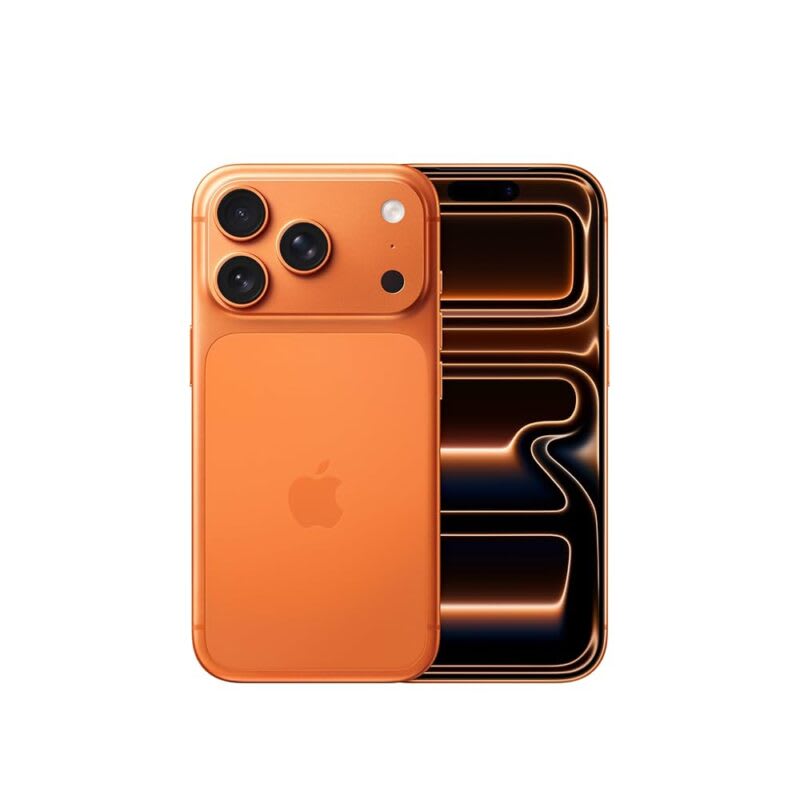

• Cosmic Orange

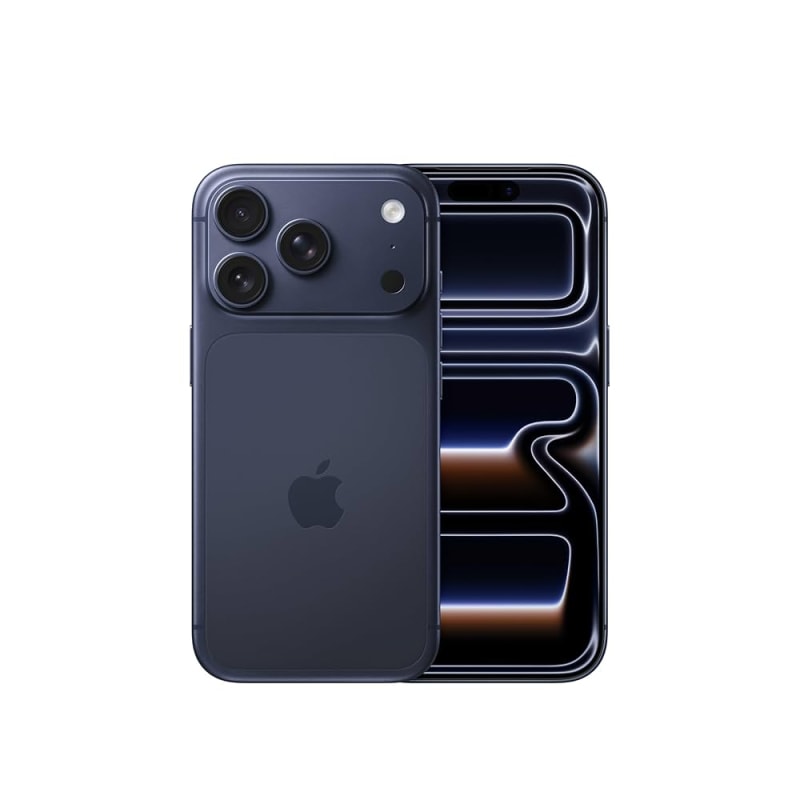

• Deep Blue

Aluminum unibody design, Ceramic Shield 2 front, Ceramic Shield back

Capacity¹

• 256GB
• 512GB
• 1TB
• 2TB

Size and Weight²

• Width: 3.07 inches (78.0 mm)
• Height: 6.43 inches (163.4 mm)
• Depth: 0.34 inch (8.75 mm)
• Weight: 8.22 ounces (233 grams)

Display

• Super Retina XDR display
• 6.9‑inch (diagonal) all‑screen OLED display
• 2868‑by‑1320-pixel resolution at 460 ppi
• Dynamic Island
• Always-On display
• ProMotion technology with adaptive refresh rates up to 120Hz
• HDR display
• True Tone
• Wide color (P3)
• Haptic Touch
• 2,000,000:1 contrast ratio (typical)
• 1000 nits max brightness (typical); 1600 nits peak brightness (HDR); 3000 nits peak brightness (outdoor); 1 nit minimum brightness
• Fingerprint-resistant oleophobic coating
• Anti-reflective coating
• Support for display of multiple languages and characters simultaneously

The iPhone 17 Pro Max display has rounded corners that follow a beautiful curved design, and these corners are within a standard rectangle. When measured as a standard rectangular shape, the screen is 6.86 inches diagonally (actual viewable area is less).

Splash, Water, and Dust Resistant³

Rated IP68 (maximum depth of 6 meters up to 30 minutes) under IEC standard 60529

Apple Intelligence

Apple Intelligence is integrated across your apps and experiences to help you communicate, express yourself, and get things done effortlessly. With groundbreaking privacy protections, it gives you peace of mind that no one else can access your data — not even Apple.⁴

Learn more about Apple Intelligence

Chip

• A19 Pro chip
• 6‑core CPU with 2 performance and 4 efficiency cores
• 6‑core GPU with Neural Accelerators
• 16‑core Neural Engine
• Hardware‑accelerated ray tracing

Camera

48MP Pro Fusion camera system

• 48MP Fusion Main: 24 mm, ƒ/1.78 aperture, second‑generation sensor‑shift optical image stabilization, 100% Focus Pixels, support for super‑high‑resolution photos (24MP and 48MP)
• Also enables 12MP optical-quality 2x Telephoto: 48 mm, ƒ/1.78 aperture, second‑generation sensor‑shift optical image stabilization, 100% Focus Pixels
• 48MP Fusion Ultra Wide: 13 mm, ƒ/2.2 aperture and 120° field of view, Hybrid Focus Pixels, super‑high‑resolution photos (48MP)
• 48MP Fusion Telephoto: 100 mm (4x), ƒ/2.8 aperture, Hybrid Focus Pixels, 3D sensor‑shift optical image stabilization and autofocus, tetraprism design
• Also enables 12MP optical-quality 8x Telephoto: 200 mm, ƒ/2.8 aperture, Hybrid Focus Pixels, 3D sensor‑shift optical image stabilization and autofocus, tetraprism design
• 8x optical‑quality zoom in, 2x optical zoom out; 16x optical‑quality zoom range
• Digital zoom up to 40x
• Customizable default lens (Fusion Main)
• Sapphire crystal lens cover
• Adaptive True Tone flash
• Photonic Engine
• Deep Fusion
• Smart HDR 5
• Next-generation portraits with Focus and Depth Control
• Portrait Lighting with six effects
• Night mode
• Panorama (up to 63MP)
• Latest-generation Photographic Styles
• Spatial photos
• 48MP macro photography
• ProRAW
• Wide color capture for photos and Live Photos
• Lens correction (Fusion Ultra Wide)
• Advanced red-eye correction
• Auto image stabilization
• Burst mode
• Photo geotagging
• Image formats captured: HEIF, JPEG, and DNG

Video Recording

• 4K Dolby Vision video recording at 24 fps, 25 fps, 30 fps, 60 fps, 100 fps (Fusion Main), or 120 fps (Fusion Main)
• 1080p Dolby Vision video recording at 25 fps, 30 fps, 60 fps, or 120 fps (Fusion Main)
• 720p Dolby Vision video recording at 30 fps
• Cinematic mode up to 4K Dolby Vision at 30 fps
• Action mode up to 2.8K Dolby Vision at 60 fps
• Spatial video recording at 1080p at 30 fps
• ProRes video recording up to 4K at 120 fps with external recording
• ProRes RAW⁵
• Academy Color Encoding System
• Apple Log 2
• Genlock support⁶
• Macro video recording, including slo‑mo and time‑lapse
• Slo‑mo video support for 1080p up to 240 fps and 4K Dolby Vision up to 120 fps (Fusion Main)
• Dual Capture up to 4K Dolby Vision at 30 fps
• Time‑lapse video with stabilization
• Night mode Time‑lapse
• QuickTake video up to 4K Dolby Vision at 60 fps
• Second‑generation sensor‑shift optical image stabilization for video (Fusion Main)
• 3D sensor‑shift optical image stabilization and autofocus for video (Fusion Telephoto)
• Digital zoom up to 15x
• Audio zoom
• True Tone flash
• Cinematic video stabilization (4K, 1080p, and 720p)
• Continuous autofocus video
• Take 8MP still photos while recording 4K video
• Playback zoom
• Video formats recorded: HEVC, H.264, ProRes, and ProRes RAW
• Spatial Audio and stereo recording
• Four studio-quality mics
• Wind noise reduction
• Audio Mix

Front Camera

• 18MP Center Stage camera
• ƒ/1.9 aperture
• Autofocus with Focus Pixels
• Retina Flash
• Tap to zoom and rotate
• Center Stage for photos
• Ultra-stabilized video
• Dual Capture
• Center Stage for video calls
• Photonic Engine
• Deep Fusion
• Smart HDR 5
• Next-generation portraits with Focus and Depth Control
• Portrait Lighting with six effects
• Animoji and Memoji
• Night mode
• Latest-generation Photographic Styles
• ProRAW
• Wide color capture for photos and Live Photos
• Lens correction
• Auto image stabilization
• Burst mode
• 4K Dolby Vision video recording at 24 fps, 25 fps, 30 fps, or 60 fps
• 1080p Dolby Vision video recording at 25 fps, 30 fps, or 60 fps
• Cinematic mode up to 4K Dolby Vision at 30 fps
• ProRes video recording up to 4K at 60 fps with external recording
• ProRes RAW⁵
• Academy Color Encoding System
• Apple Log 2
• Slo-mo video support for 1080p at 120 fps
• Time‑lapse video with stabilization
• Night mode Time-lapse
• QuickTake video up to 4K at 60 fps in Dolby Vision
• Cinematic video stabilization (4K, 1080p, and 720p)
• Spatial Audio and stereo recording
• Wind noise reduction
• Audio Mix

Power and Battery⁷

• Video playback: Up to 39 hours
• Video playback (streamed): Up to 35 hours
• Built‑in rechargeable lithium‑ion battery
• Fast-charge capable:
• Up to 50% charge in 20 minutes⁸ with 40W adapter or higher (available separately) paired with USB-C charging cable
• Up to 50% charge in 30 minutes⁸ with 30W adapter or higher paired with MagSafe Charger (both available separately)

Face ID

Enabled by TrueDepth technology in the Center Stage front camera

Peace of Mind

• Emergency SOS via satellite⁹
• Crash Detection¹⁰
• Roadside Assistance via satellite⁹
• Messages via satellite⁹
• Find My via satellite⁹

Cellular and Wireless

Models A3256 and A3257**

• FDD-5G NR (Bands n1, n2, n3, n5, n7, n8, n12, n14, n20, n25, n26, n28, n29, n30, n66, n70, n71, n75)
• TDD-5G NR (Bands n38, n40, n41, n48, n53, n77, n78, n79)
• 5G NR mmWave (Bands n258, n260, n261)
• FDD-LTE (Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 66, 71)
• TDD-LTE (Bands 34, 38, 39, 40, 41, 42, 48, 53)
• UMTS/HSPA+/DC-HSDPA (850, 900, 1700/2100, 1900, 2100 MHz)
• GSM/EDGE (850, 900, 1800, 1900 MHz)
• 5G (sub-6 GHz and mmWave) with 4x4 MIMO¹¹
• Gigabit LTE with 4x4 MIMO¹¹

Apple N1 wireless networking chip

• Wi‑Fi 7 (802.11be) with 2x2 MIMO¹²
• Bluetooth 6
• Thread networking technology

Apple second-generation Ultra Wideband chip¹³

• NFC with reader mode
• Express Cards with power reserve

For details on 5G and LTE support, contact your carrier and see apple.com/iphone/cellular.

Location

• Precision dual-frequency GPS (GPS, GLONASS, Galileo, QZSS, BeiDou, and NavIC)
• Digital compass
• Wi-Fi
• Cellular
• iBeacon microlocation

External Buttons and Connectors

• Volume up/down
• Action button
• Camera Control
• Side button
• USB-C connector
• Built‑in microphones
• Built‑in stereo speaker

Action button features

• Silent mode, Focus, Camera, Visual Intelligence,¹⁴ Flashlight, Voice Memo, Recognize Music, Translate, Magnifier, Controls, Shortcut, or Accessibility

Camera controls

• Exposure, Depth, Zoom, Cameras, Styles, Tone

Charging and Expansion

USB-C connector with support for:

• Charging
• DisplayPort
• USB 3 (up to 10Gb/s)¹⁵

MagSafe and Wireless Charging

• MagSafe wireless charging up to 25W⁸
• Qi2 wireless charging up to 25W⁸
• Magnet array
• Alignment magnet
• Accessory Identification NFC
• Magnetometer

Sensors

• Face ID
• LiDAR Scanner
• Barometer
• High dynamic range gyro
• High-g accelerometer
• Proximity sensor
• Dual ambient light sensors

SIM Card

• Dual eSIM (two active eSIMs; stores eight or more eSIMs)¹⁶
• iPhone 17 Pro and iPhone 17 Pro Max use advanced eSIM technology for more convenience and security (not compatible with physical SIM cards).

Learn more about traveling with eSIM

Apple Pay

• Pay with your iPhone using Face ID in stores, within apps, and on the web
• Send and receive money in Messages with Apple Cash¹⁷
• Complete purchases made with Apple Pay on your Mac
• Pay for your ride using Express Transit¹⁸

Learn more about Apple Pay

Learn more about Apple Cash

Video Calling¹⁹

• FaceTime video calling over cellular or Wi‑Fi
• FaceTime HD (1080p) video calling over 5G or Wi‑Fi
• Center Stage for video calling
• SharePlay
• Screen sharing
• Portrait mode in FaceTime video
• Spatial Audio
• Voice Isolation and Wide Spectrum microphone modes
• Optical zoom with rear‑facing camera

Audio Calling¹⁹

• FaceTime audio
• Voice over LTE (VoLTE)¹¹
• Wi‑Fi calling¹¹
• SharePlay
• Screen sharing
• Spatial Audio
• Voice Isolation and Wide Spectrum microphone modes

Audio Playback

• Supported formats include AAC, APAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus, and Dolby Atmos
• Spatial Audio playback
• User‑configurable maximum volume limit

Video Playback

• Supported formats include HEVC, H.264, AV1, and ProRes
• HDR with Dolby Vision, HDR10+/HDR10, and HLG
• Up to 4K HDR AirPlay for mirroring, photos, and video out to Apple TV (2nd generation or later) or AirPlay‑enabled smart TV
• Video mirroring and video out support: Up to 4K HDR through native DisplayPort output over USB-C or USB-C Digital AV Adapter (model A2119; adapter sold separately)²⁰

Siri²¹

• Get help with everyday tasks like sending messages, setting reminders, and more
• Activate hands‑free with only your voice using “Siri” or “Hey Siri,” or use Type to Siri
• Protected by the strongest privacy of any intelligent assistant
• Powered by Apple Intelligence, Siri is more natural and helpful⁴

Learn more about Siri

Operating System

iOS

iOS is the world’s most personal and secure mobile operating system, packed with powerful features and designed to protect your privacy.

Privacy

iPhone is built from the ground up to protect your personal information. Every iPhone has secure facial authentication. Apps need your permission to track your activity across other companies’ apps or websites. Your iMessages and FaceTime video calls are encrypted end-to-end. And much more.

Learn more about privacy features

Accessibility

Built-in accessibility features supporting vision, mobility, hearing, speech, and cognitive needs help you get the most out of your iPhone — in the ways that work best for you.

Learn more about Accessibility

Features include:

• VoiceOver
• Zoom
• Magnifier
• Voice Control
• Switch Control
• AssistiveTouch
• Eye Tracking
• RTT and TTY support
• Closed Captions
• Live Captions
• Personal Voice
• Live Speech
• Type to Siri
• Vocal Shortcuts
• Spoken Content

Built-in Apps

• App Store
• Books
• Calculator
• Calendar
• Camera
• Clock
• Compass
• Contacts
• FaceTime
• Files
• Find My
• Fitness
• Freeform
• Games
• GarageBand
• Health
• Home
• iMovie
• iTunes Store
• Journal
• Keynote
• Magnifier
• Mail
• Maps
• Measure
• Messages
• Music
• News
• Notes
• Numbers
• Pages
• Passwords
• Phone
• Photos
• Podcasts
• Preview
• Reminders
• Safari
• Settings
• Shortcuts
• Stocks
• Tips
• Translate
• TV
• Voice Memos
• Wallet
• Watch
• Weather

For a complete list of Apple apps available on iPhone, see apple.com/apps.

Rating for Hearing Aids

Hearing Aid Compatible

System Requirements

• Apple Account (required for some features)
• Internet access²²
• Syncing to a Mac or PC requires:
• macOS Catalina 10.15 or later using the Finder
• macOS High Sierra 10.13 through macOS Mojave 10.14.6 using iTunes 12.8 or later
• Windows 10 or later using iTunes 12.12.10 or later (free download from apple.com/itunes/download)

Environmental Requirements

• Operating ambient temperature: 32° to 95° F (0° to 35° C)
• Nonoperating temperature: −4° to 113° F (−20° to 45° C)
• Relative humidity: 5% to 95% noncondensing
• Operating altitude: tested up to 10,000 feet (3000 m)

Languages

Language support

English (Australia, UK, U.S.), Chinese (Simplified, Traditional, Traditional – Hong Kong), French (Canada, France), German, Italian, Japanese, Korean, Spanish (Latin America, Spain), Arabic, Bulgarian, Catalan, Croatian, Czech, Danish, Dutch, Finnish, Greek, Hebrew, Hindi, Hungarian, Indonesian, Kazakh, Malay, Norwegian, Polish, Portuguese (Brazil, Portugal), Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese

Learn more about feature availability

In the Box

• iPhone 17 Pro Max
• USB‑C Charge Cable (1 m)
• Documentation

As part of our efforts to reach carbon neutrality by 2030, iPhone 17 Pro and iPhone 17 Pro Max do not include a power adapter or EarPods. Included in the box is a USB‑C Charge Cable that supports fast charging and is compatible with USB‑C power adapters and computer ports.

We encourage you to use any compatible USB‑C power adapter. If you need a new Apple power adapter or headphones, they are available for purchase.

iPhone and the Environment

iPhone 17 Pro and iPhone 17 Pro Max are designed to reduce environmental impact:²³

See the iPhone 17 Pro and iPhone 17 Pro Max Product Environmental Report (PDF)

Progress toward Apple 2030

• Apple 2030 is our commitment to be carbon neutral for our entire carbon footprint. Our plan to decarbonize products is rigorous and focuses on transitioning to low‑carbon electricity, designing with recycled and low‑carbon materials, and prioritizing lower‑carbon ways of shipping products, like ocean freight.

Materials

iPhone 17 Pro and iPhone 17 Pro Max are made with 30% recycled content,²⁴ including:

• 50% recycled aluminum in the enclosure
• 100% recycled cobalt and 95% recycled lithium in the battery
• 100% recycled gold plating and tin solder in all Apple‑designed printed circuit boards
• 100% recycled gold wire in all cameras and gold plating in all connectors
• 100% recycled tungsten and copper wire in the Taptic Engine
• 100% recycled copper in the vapor chamber enclosure
• 100% recycled rare earth elements in all magnets

Energy

• 40% of manufacturing electricity for iPhone 17 Pro and iPhone 17 Pro Max is sourced from renewable electricity²⁵
• Exceeds U.S. Department of Energy requirements for battery charger systems²⁶

Packaging

• 100% fiber-based packaging²⁷
• iPhone 17 Pro and iPhone 17 Pro Max packaging is designed to be more efficient than iPhone 16 Pro boxes, increasing the number of devices shipped per trip by 25%²⁸

Waste

• No established final assembly sites generate waste sent to landfill as part of Apple’s Zero Waste Program²⁹
